Industrial Plastic Shredder Machine for Plastic Recycling

Q: What is a plastic shredder used for?

A plastic shredder is used to reduce bulky plastic waste such as film, bottles, pipes, drums, pallets, injection molding scrap and plastic lumps before crushing, washing, drying, pelletizing or reuse.

What Is a Plastic Shredder?

A plastic shredder is a size-reduction machine designed to process bulky plastic waste into smaller, easier-to-handle pieces before crushing, washing, drying or pelletizing.

In most recycling projects, the shredder is the first machine used to reduce volume and stabilize feeding. Materials such as plastic film, HDPE bottles, PVC pipe, plastic pallets, drums and injection molding scrap can all require different shredding configurations.

Engineering Tip:
In plastic recycling projects, the machine should be selected according to material form and downstream processing requirements rather than motor power alone.

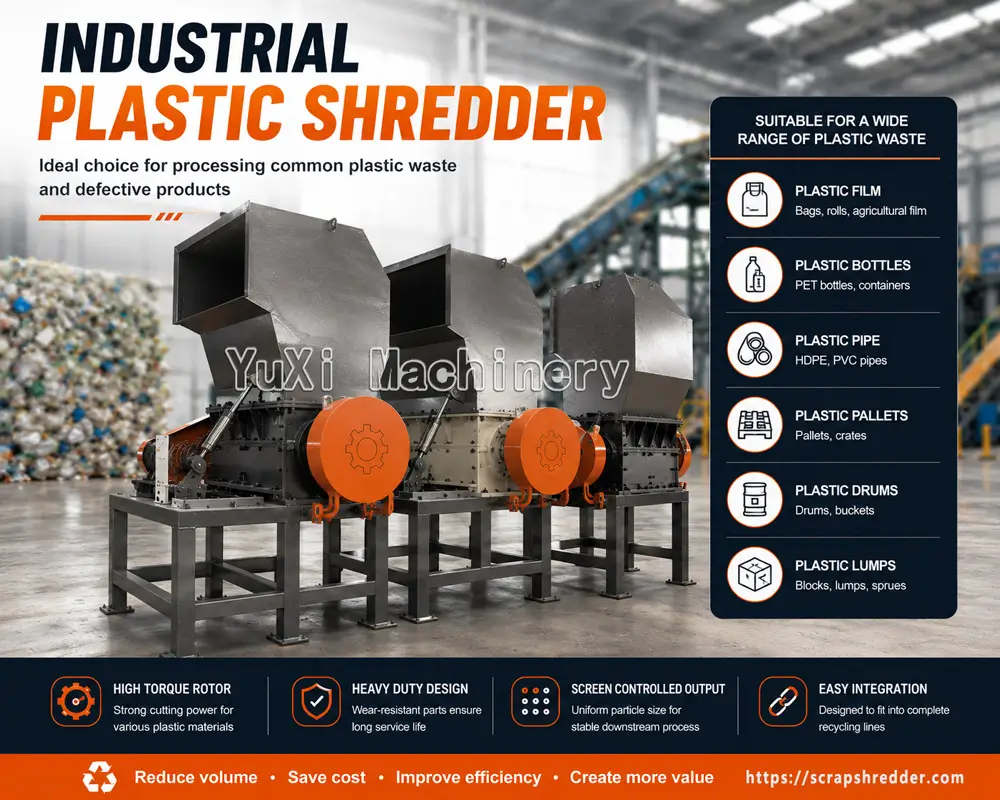

Industrial plastic shredder machine for recycling plastic film bottles pipes pallets drums and plastic waste

What Types of Plastic Waste Can Be Processed?

A heavy duty plastic shredder can process many plastic waste forms, but the feeding method, blade design and output screen should be matched to the material. The table below gives a practical starting point for model selection.

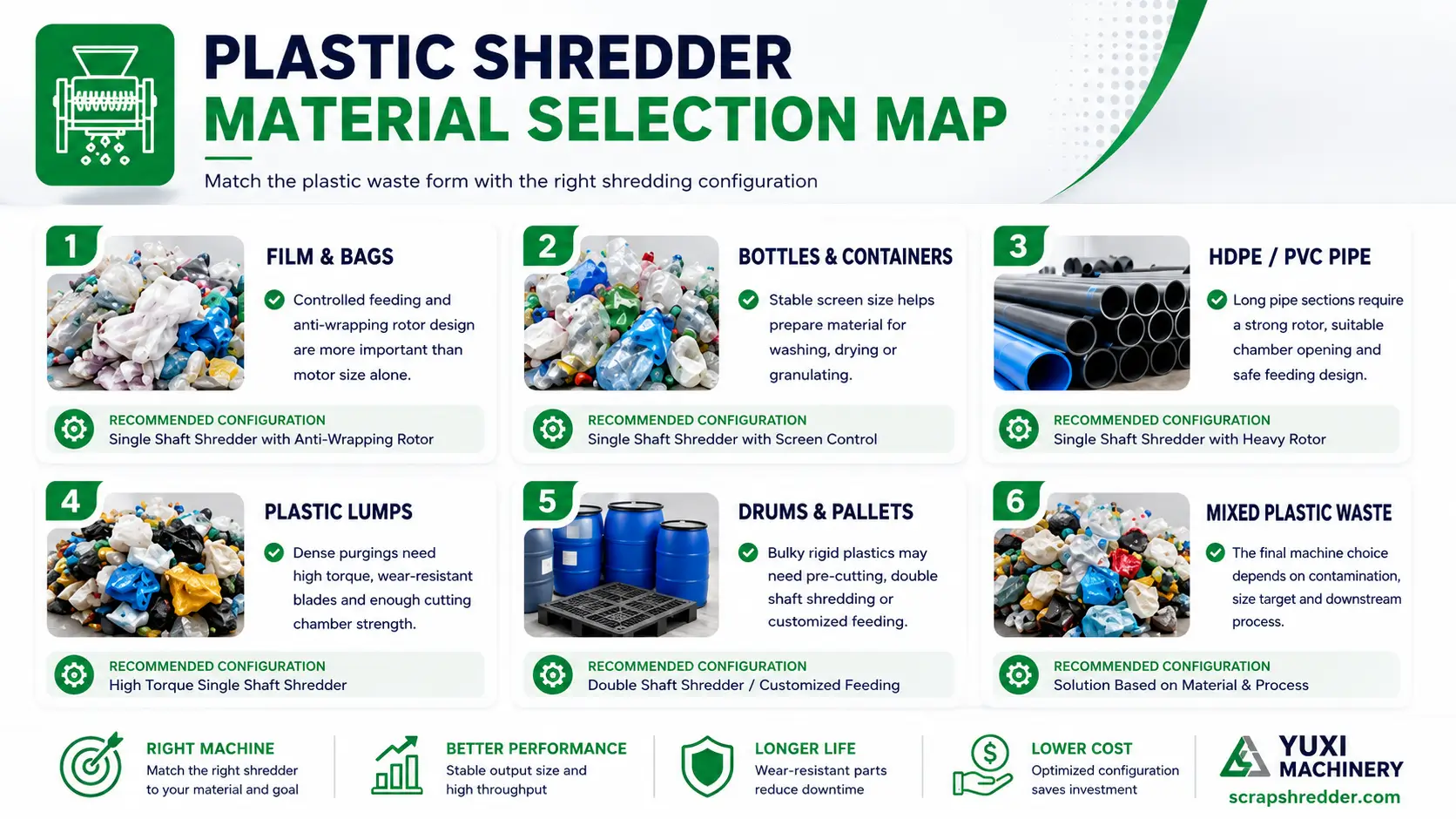

Plastic shredder material selection map for film bottles pipe lumps drums and mixed plastic waste

Material form is the first selection factor for an industrial plastic shredder machine.

Plastic Material	Common Machine Names	Project Notes
Plastic bottles and HDPE containers	plastic bottle shredder, plastic bottle shredder machine	Often used before washing, drying or granulation. Output size should match the next process.
Plastic film, bags and woven bags	plastic film shredder, plastic bag shredder, woven bag shredder	Feeding stability and anti-wrapping design matter more than simple motor size.
HDPE pipe, PVC pipe and plastic tubes	HDPE pipe shredder, plastic pipe shredder, pvc pipe shredder	Long material needs chamber size, rotor strength and safe feeding design.
Plastic lumps and purgings	plastic lump shredder, injection molding scrap shredder	Dense material requires torque, blade hardness and enough cutting strength.
Plastic drums, barrels and IBC parts	plastic drum shredder, plastic barrel shredder	Bulky rigid waste may need customized hopper and pre-cutting support.
Plastic pallets and crates	plastic pallet shredder, plastic crate shredder	Usually requires larger chamber opening and strong shaft/rotor configuration.

Plastic Shredder Applications

Plastic Film Recycling

Film bales and bags are light but easy to wrap around shafts. The real challenge is steady feeding. For washing-line projects, operators usually care about a consistent feed size before washing and drying.

Plastic Pipe Recycling

HDPE and PVC pipe waste is difficult because it is long, rigid and sometimes thick-walled. A plastic pipe shredder should be checked by pipe diameter, pipe length and feeding method.

Plastic Bottle Recycling

Plastic bottles and containers are often processed before washing, label removal or granulation. A plastic bottle shredder machine helps reduce volume and improve line feeding.

Injection Molding Scrap

Runners, defective parts and plastic lumps from factories are usually dense. For this application, blade material, rotor strength and screen size are important for stable operation.

Plastic Drums and Pallets

Large hollow plastics need a chamber and hopper that can accept bulky material. For some projects, double shaft pre-shredding followed by finer reduction is more practical.

Mixed Industrial Plastic Waste

Mixed waste may contain labels, dust, light metal or different plastic types. Before quotation, samples or material photos should be checked carefully to avoid wrong machine sizing.

How Does a Plastic Shredder Work?

The plastic shredding machine uses rotating blades and fixed counter blades to cut material inside the chamber. Material that reaches the required size passes through the screen. Larger pieces stay inside the cutting chamber until they are reduced further.

This screen-controlled discharge is useful when the shredded plastic needs to enter a crusher, conveyor, washing line or granulator. For many recycling plants, stable output size is more valuable than simply running at the highest possible speed.

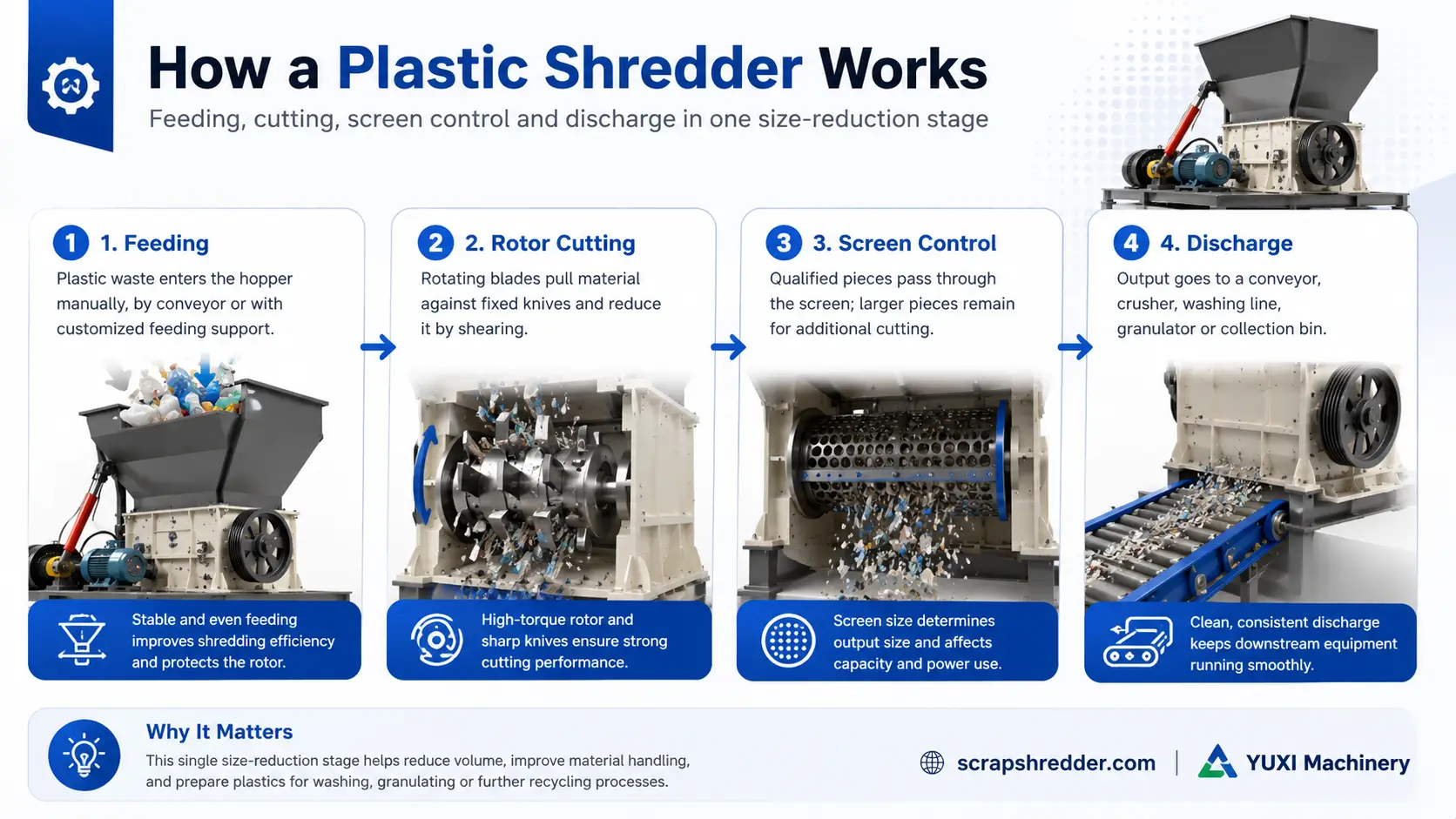

How a plastic shredder works feeding rotor cutting screen control and discharge

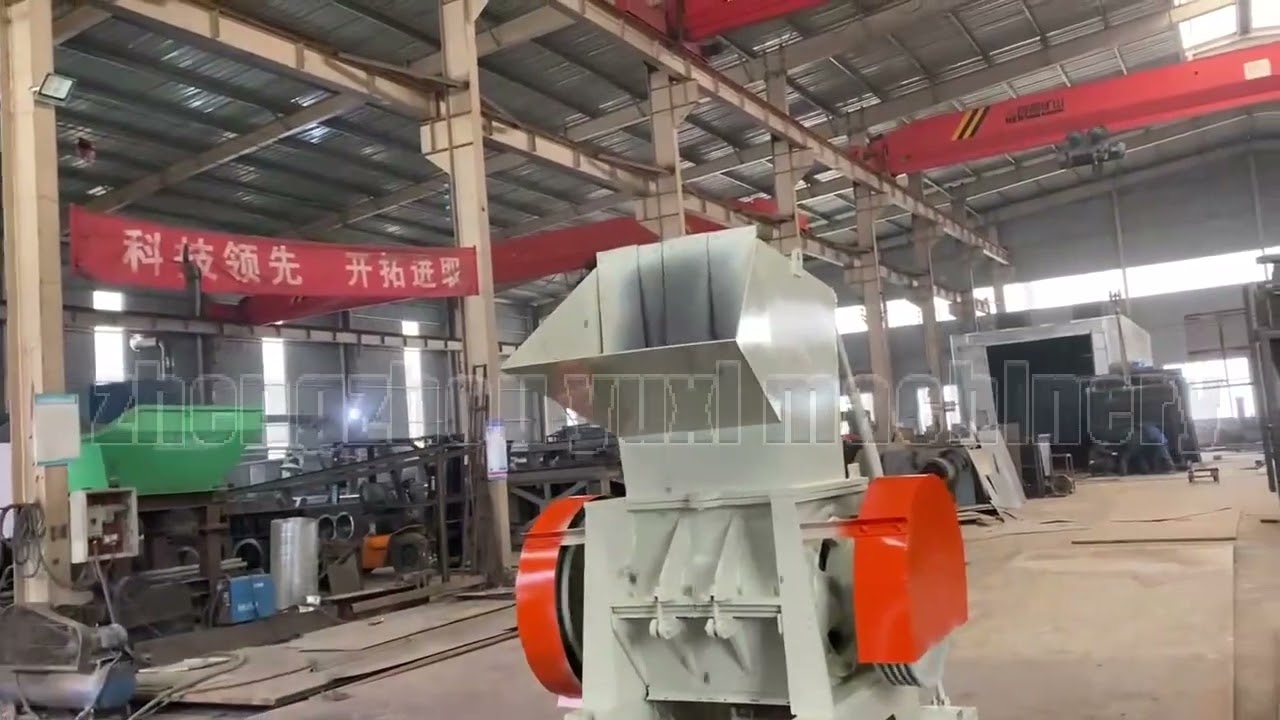

Plastic Shredder Video

Watch the plastic shredder machine video to understand the feeding, cutting and discharge process before requesting a model recommendation.

Video source: YouTube plastic shredder video

Plastic Shredder vs Plastic Crusher: What Is the Difference?

A plastic shredder is usually used for bulky or difficult-to-feed plastic waste. A plastic crusher or granulator is usually used when the input material is already smaller and the plant needs a finer, more uniform output.

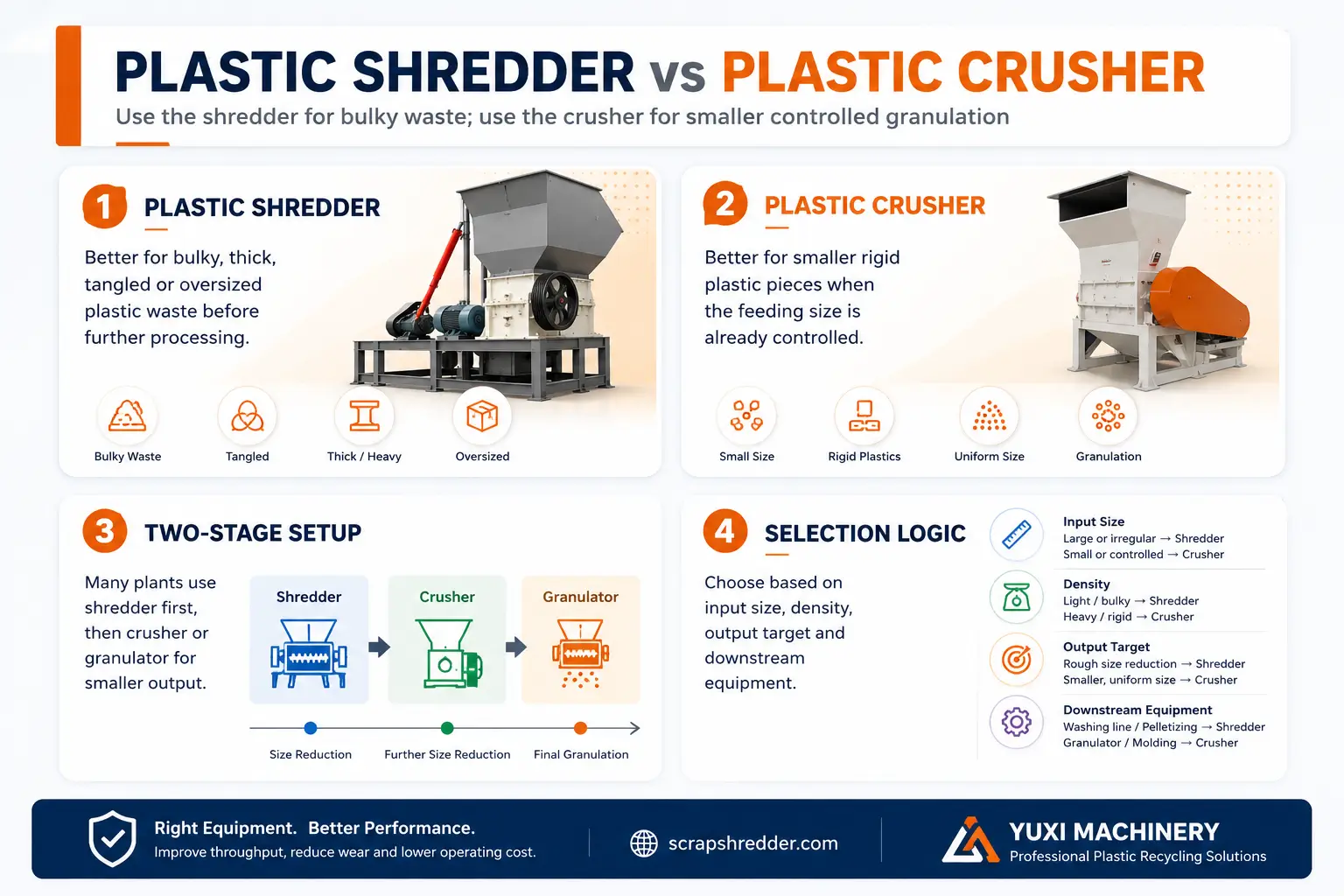

Plastic shredder vs plastic crusher comparison for recycling projects

Item	Plastic Shredder	Plastic Crusher / Granulator
Main role	Primary size reduction for bulky plastic waste	Secondary crushing or finer granulation
Common input	Film bales, pipe, drums, pallets, lumps, mixed waste	Smaller plastic parts, regrind, controlled feeding material
Output control	Controlled by screen and cutting chamber design	Usually smaller and more uniform output
Best use	Pre-shredding before washing, crushing or pelletizing	Final size reduction before washing or pelletizing

For a complete plastic recycling system, many plants use both: first an industrial plastic shredder, then a crusher or granulator. This two-stage setup is often more stable than forcing one machine to do every job.

Single Shaft or Double Shaft Plastic Shredder?

A single shaft shredder is usually chosen when the project needs better output size control through a screen. It is common for plastic lumps, bottles, film, pipe sections and production scrap.

A double shaft shredder is usually chosen for rough volume reduction, bulky waste opening or mixed waste pre-shredding. It has strong biting force, but output size is less controlled unless a second stage is added.

Practical decision:
If the downstream process needs a specific particle size, start by checking single shaft or two-stage shredding. If the first task is only to break large plastic waste into manageable pieces, double shaft shredding may be enough.

Plastic Shredder Machine Specifications

The following specification range is based on the current YUXI plastic shredder product series. Final selection should be confirmed by material photos, input size, expected output size and required capacity.

Model	Power	Rotor Speed	Screen Diameter	Cutting Chamber	Output	Weight
YX-2640G	7.5 kW	560 rpm	Φ10 mm	270×400 mm	300–550 kg/h	550 kg
YX-2650G	11 kW	560 rpm	Φ10 mm	270×500 mm	400–650 kg/h	650 kg
YX-3660G	15 kW	560 rpm	Φ12 mm	370×600 mm	400–700 kg/h	1200 kg
YX-3680G	22 kW	560 rpm	Φ12 mm	370×800 mm	600–900 kg/h	1350 kg
YX-4680G	30 kW	560 rpm	Φ12 mm	480×800 mm	700–1200 kg/h	1690 kg
YX-46100G	37 kW	560 rpm	Φ12 mm	480×1000 mm	800–1600 kg/h	1850 kg

Actual output depends on plastic type, bulk density, moisture, contamination, blade condition, screen size and feeding stability.

Plastic Shredder in a Complete Recycling System

A plastic recycling shredder is rarely an isolated machine in larger plants. It may feed a conveyor, magnetic separator, crusher, washing tank, friction washer, drying system or pelletizing line. The shredder should be selected around the whole process, not only around the first feeding step.

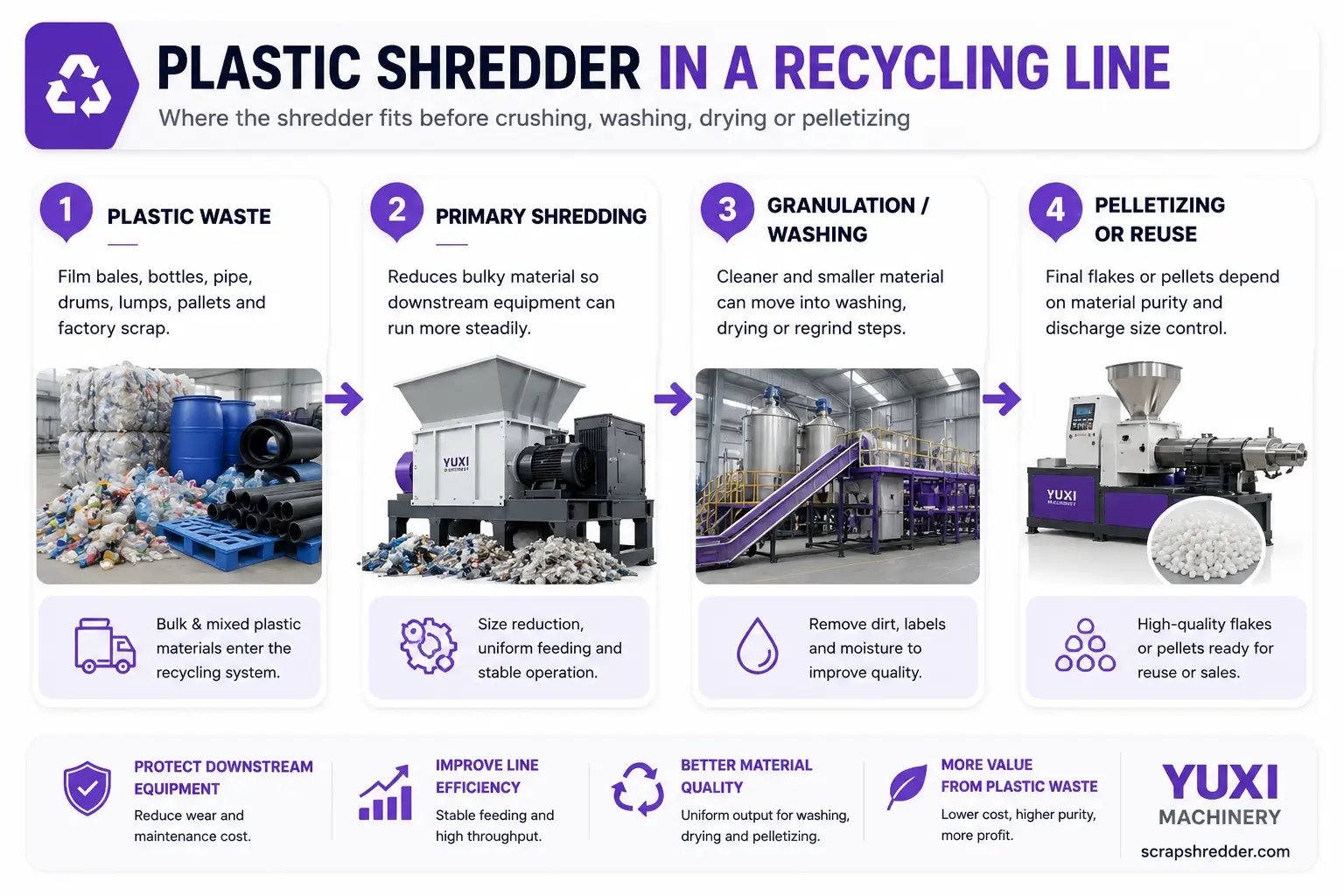

Plastic shredder position in a recycling line before crusher washing drying and pelletizing

For example, film recycling usually needs steady feeding into washing equipment. Pipe recycling may need a stronger shredder before granulation. Injection molding scrap recycling often focuses on internal reuse and controlled regrind quality.

How to Choose the Right Plastic Shredder Machine

A plastic shredder machine for recycling should be selected from project details. The following checklist helps avoid oversizing, undersizing or choosing the wrong cutting structure.

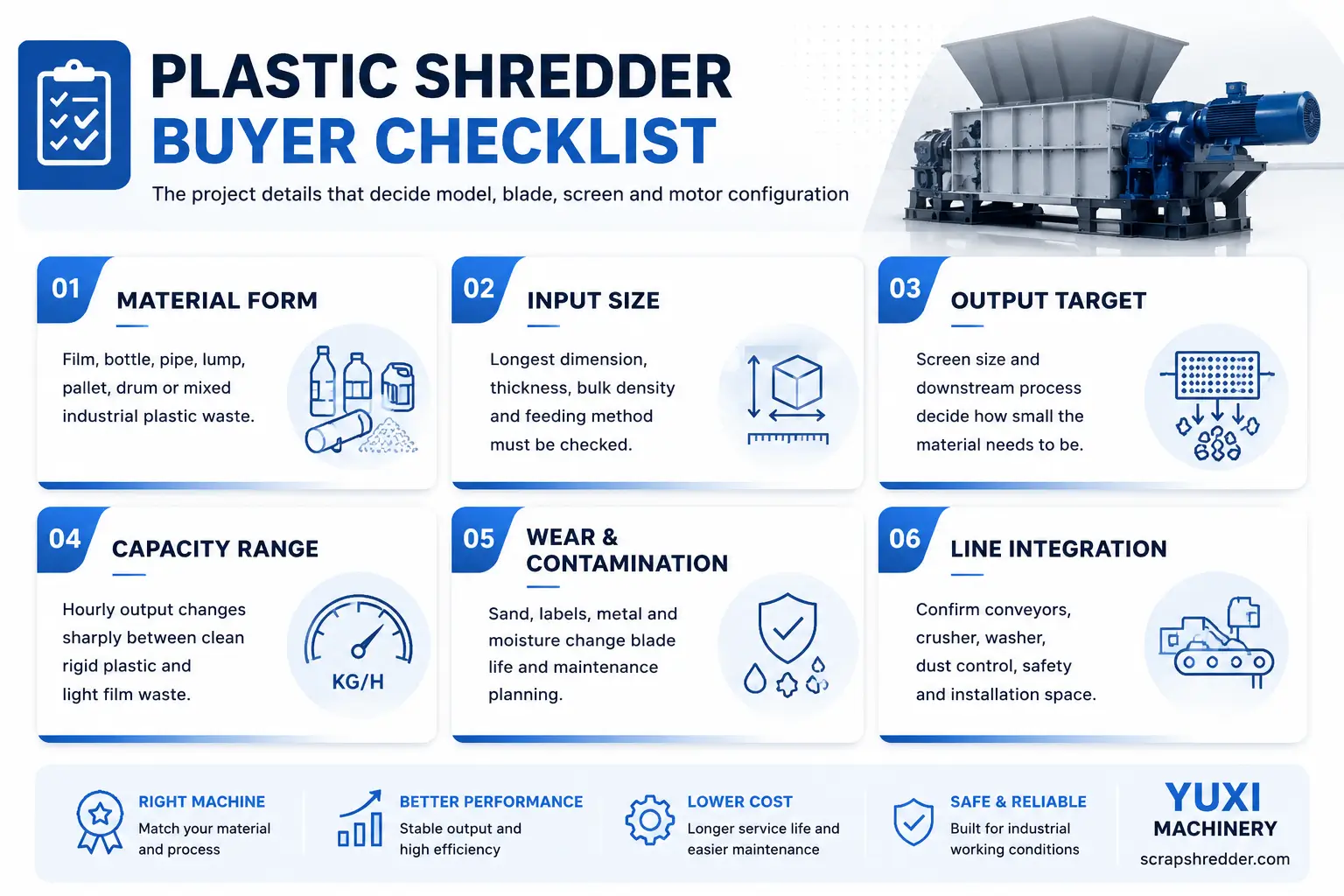

Plastic shredder buyer checklist for material input size output capacity contamination and line integration

1. Confirm the plastic material and form

Plastic film, rigid bottles, HDPE pipe, PP woven bags, plastic drums and plastic lumps all feed differently. Send photos, dimensions and material density before selecting a model.

2. Define the required output size

If the material goes to a granulator, washing line or pelletizing line, output size should be planned with the next machine. Screen diameter and blade design should not be chosen randomly.

3. Check the real capacity target

A capacity number without material details is not useful. Light film and dense plastic lumps may show very different hourly output on the same machine.

4. Consider wear, contamination and maintenance

Sand, metal pieces, labels, moisture and mixed material can shorten blade life. For industrial plastic waste shredder projects, maintenance access is part of the buying decision.

5. Plan the downstream equipment

The shredder discharge height, conveyor width, crusher inlet, dust control and electrical system should be planned as a line. This is especially important when the machine is installed in an existing recycling plant.

Why Choose YUXI Plastic Shredder?

Application-based selection

YUXI does not recommend one plastic shredder for every material. The machine is selected according to plastic form, input size, output target and downstream process.

Durable cutting parts

Rotor blades and counter blades are designed for industrial plastic waste processing, with attention to wear parts replacement and blade re-sharpening.

Screen-controlled output

Screen configuration helps control discharge size before further crushing, washing or pelletizing.

Easy maintenance access

Hydraulic access to the hopper or screen cradle can reduce the time needed for blade and screen replacement.

Line integration support

The machine can be discussed together with conveyors, crushers, washing equipment and downstream recycling systems.

Factory quotation support

Buyers can send material photos, size, capacity and output requirements to receive a more accurate plastic shredder price and configuration.

Plastic Shredder FAQs

What is a plastic shredder used for?

A plastic shredder is used to reduce bulky plastic waste before crushing, washing, drying, pelletizing or reuse. Common materials include plastic film, bottles, pipe, drums, pallets, woven bags, plastic lumps and injection molding scrap.

What is the difference between a plastic shredder and a plastic crusher?

A plastic shredder is usually used for oversized, bulky or difficult-to-feed plastic waste. A plastic crusher is usually used for smaller material or for finer granulation after shredding.

Can a plastic shredder process HDPE pipe?

Yes. HDPE pipe can be shredded, but the pipe diameter, wall thickness, length and feeding method must be checked before selecting the cutting chamber and motor power.

Can plastic film be shredded?

Yes. Plastic film can be shredded, but feeding control and anti-wrapping design are important. In many film washing projects, steady feeding is more important than simple cutting speed.

What output size can a plastic shredder produce?

Output size depends on screen diameter, blade design, material thickness and cutting chamber structure. For recycling lines, the required output should be matched to the crusher, washing line or pelletizing process.

How much does a plastic shredder machine cost?

Plastic shredder machine price depends on model size, motor power, blade material, chamber size, screen design, feeding method, control system and whether the machine is part of a complete recycling line.

Is a single shaft or double shaft shredder better for plastic waste?

A single shaft plastic shredder is better when output size control is important. A double shaft shredder is better for rough volume reduction or bulky pre-shredding before a second process.

Can the shredder be used in a plastic recycling plant?

Yes. A plastic recycling shredder can be integrated with conveyors, crushers, washing systems, drying systems and pelletizing lines. The layout should be confirmed before production.

What information is needed for a quotation?

Send the plastic type, material photos, input size, expected output size, required capacity, working hours, site voltage and downstream process. These details help avoid an inaccurate plastic shredder quotation.
