Four Shaft Shredder Machine for Bulky Waste, E-Waste & RDF Recycling

Q: What is a four shaft shredder?

A four shaft shredder is a low-speed, high-torque industrial shredder that uses four cutter shafts and a screen system to reduce bulky or mixed waste into a more controlled output size.

What Is a Four Shaft Shredder?

A four shaft shredder is a low-speed, high-torque shredding machine designed for projects that need both aggressive material grabbing and more controlled output size.

Unlike a simple rough shredder, a four shaft design normally uses two upper shafts for primary grabbing and pre-cutting, and two lower shafts for secondary shearing. Material that is still too large remains in the cutting chamber until it can pass through the screen. This makes the machine useful when the downstream process needs a more predictable particle size.

Practical answer: choose a four shaft shredder when mixed or bulky materials must be reduced to a controlled size before separation, RDF/SRF preparation, granulation, washing or baling.

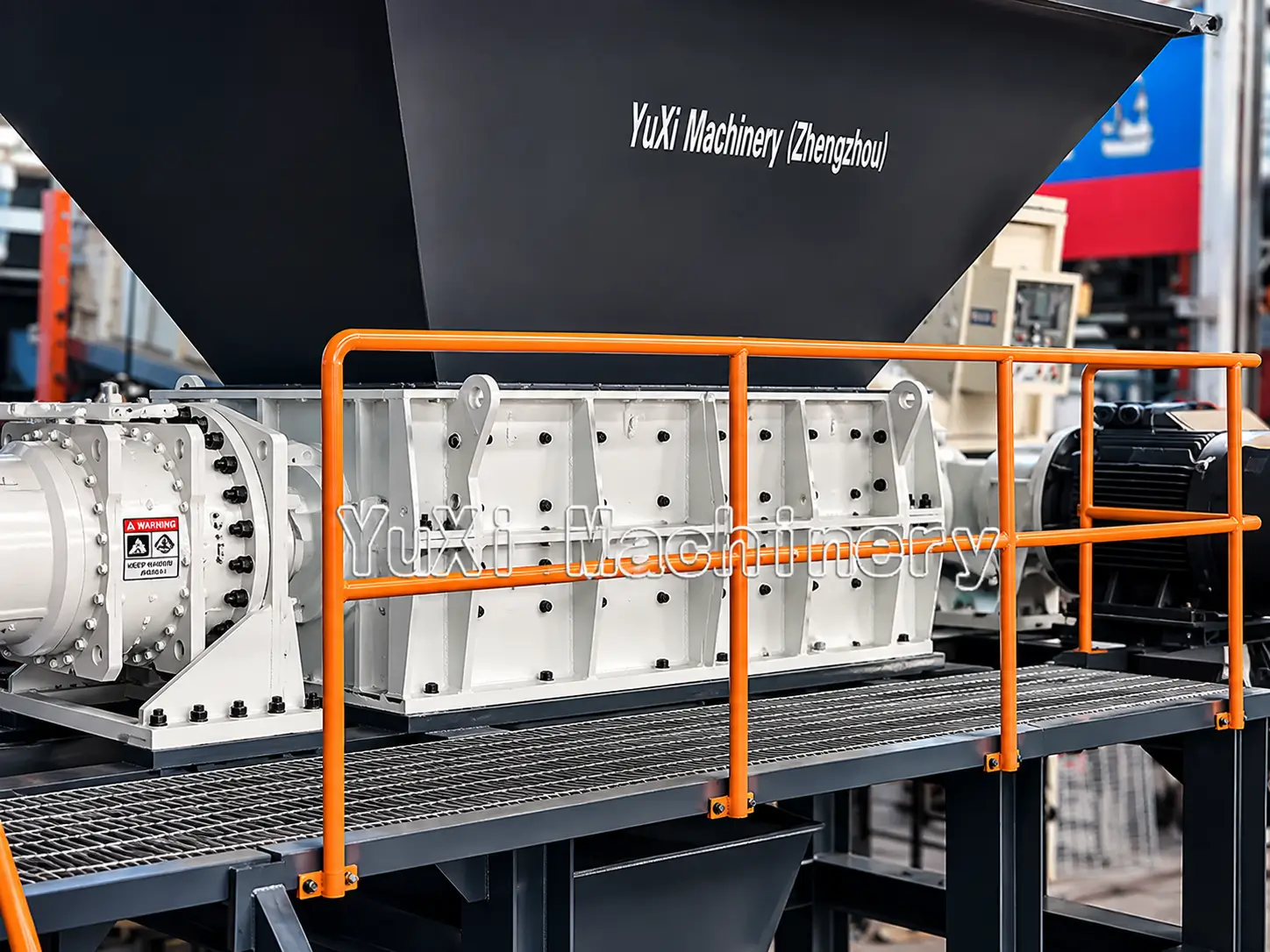

YUXI four shaft shredder machine in factory

Heavy-duty four shaft shredder machine designed for controlled size reduction of bulky waste, e-waste, plastic drums and mixed industrial materials.

Why Four Shaft Shredding Matters in Real Recycling Projects

Bulky material does not feed evenly

Sofas, plastic drums, appliances and light metal scrap often bridge, bounce or rotate inside a weak cutting chamber. Four shafts improve grabbing and reduce idle cutting.

Output size affects the whole line

If oversize material enters a separator, conveyor, granulator or baler, it can cause blockage and unstable production. A screen-controlled shredder reduces this risk.

One machine must handle mixed waste

Industrial waste streams are rarely clean. The shredder may see plastics, textiles, light metal, cable, wood and packaging residue in the same shift.

How Does a Four Shaft Shredder Work?

The core logic is not just “four shafts are stronger.” The value comes from repeated cutting and screen-controlled discharge.

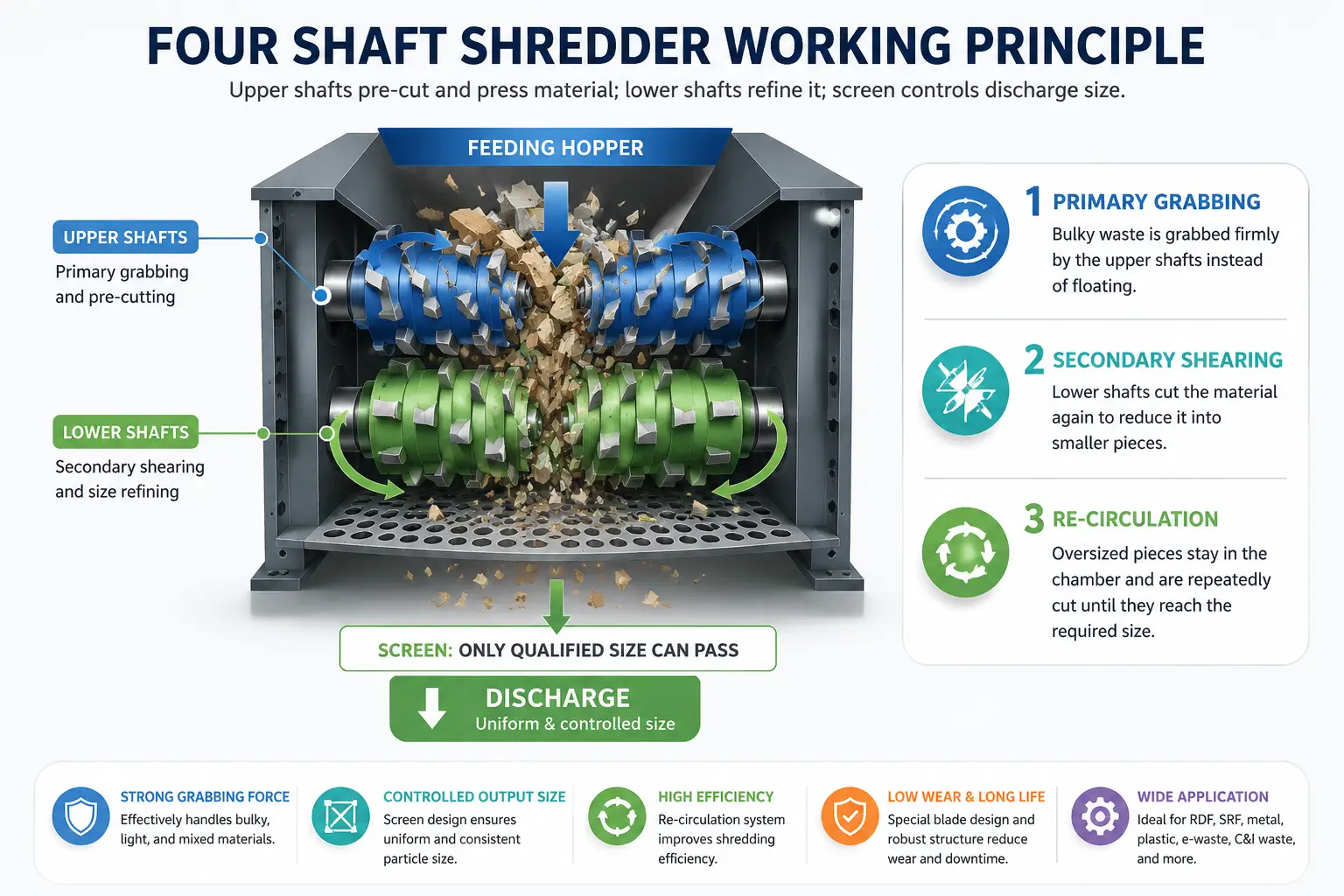

Four shaft shredder working principle diagram with upper shafts lower shafts and screen

1. Primary grabbing

The upper shafts catch bulky or loose material and pull it into the chamber. This is important for drums, bags, textiles, appliances and furniture waste.

2. Secondary shearing

The lower shafts cut oversized pieces again instead of discharging them too early. This helps reduce uneven output and protects downstream equipment.

3. Screen control

Only material that reaches the required size can pass through the screen. Oversized pieces continue circulating until they are cut smaller.

The upper cutting shafts perform the initial shredding and material grabbing process, breaking bulky materials into smaller pieces.
The lower shafts continue the secondary cutting stage, reducing material size further and improving particle uniformity.
Materials that remain larger than the selected screen opening stay inside the shredding chamber for additional cutting cycles until they can pass through the screen. This recirculating process is one of the key advantages of a four shaft shredder compared with a conventional double shaft shredder.

Four Shaft Shredder vs Double Shaft Shredder

A double shaft shredder is often enough for rough pre-shredding. A four shaft shredder becomes more valuable when the plant needs more consistent discharge size.

For projects that only require rough volume reduction, a Double Shaft Shredder may be sufficient. However, when downstream processes require more controlled particle size, a four shaft shredder machine is usually the better choice.

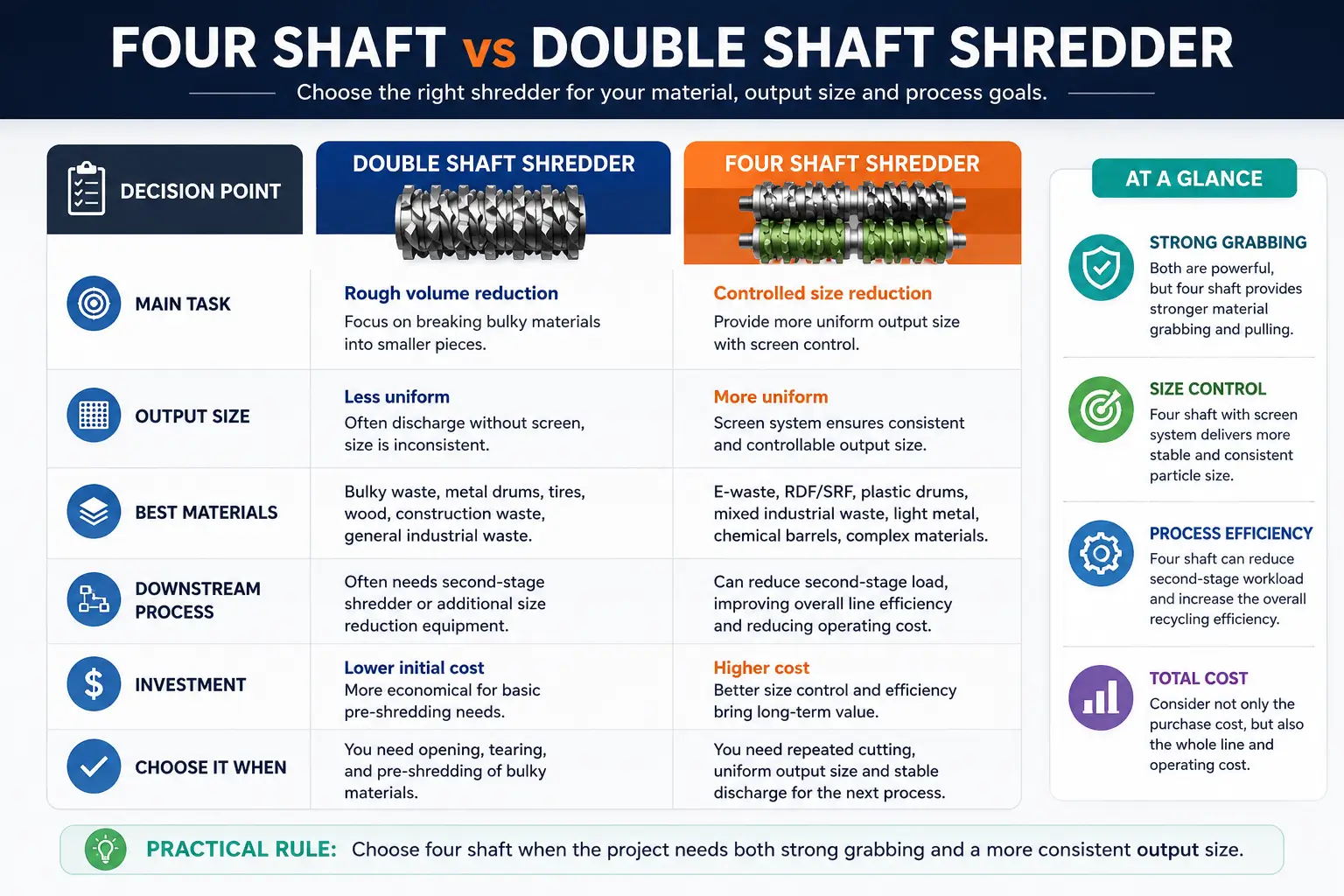

Four shaft vs double shaft shredder comparison chart

Decision Point	Double Shaft Shredder	Four Shaft Shredder
Main purpose	Rough tearing and volume reduction	Repeated shearing with controlled output size
Screen control	Usually limited or not required	Commonly used to control discharge size
Best use	Pre-shredding tires, drums, wood, metal scrap	E-waste, RDF, hazardous packaging, mixed industrial waste
When to choose	When downstream equipment can accept rough pieces	When oversized discharge causes blockage or sorting problems

What Materials Can a Four Shaft Shredder Process?

The machine is suitable for materials that are bulky, mixed, contaminated or difficult to control with a simple single-stage shredder.

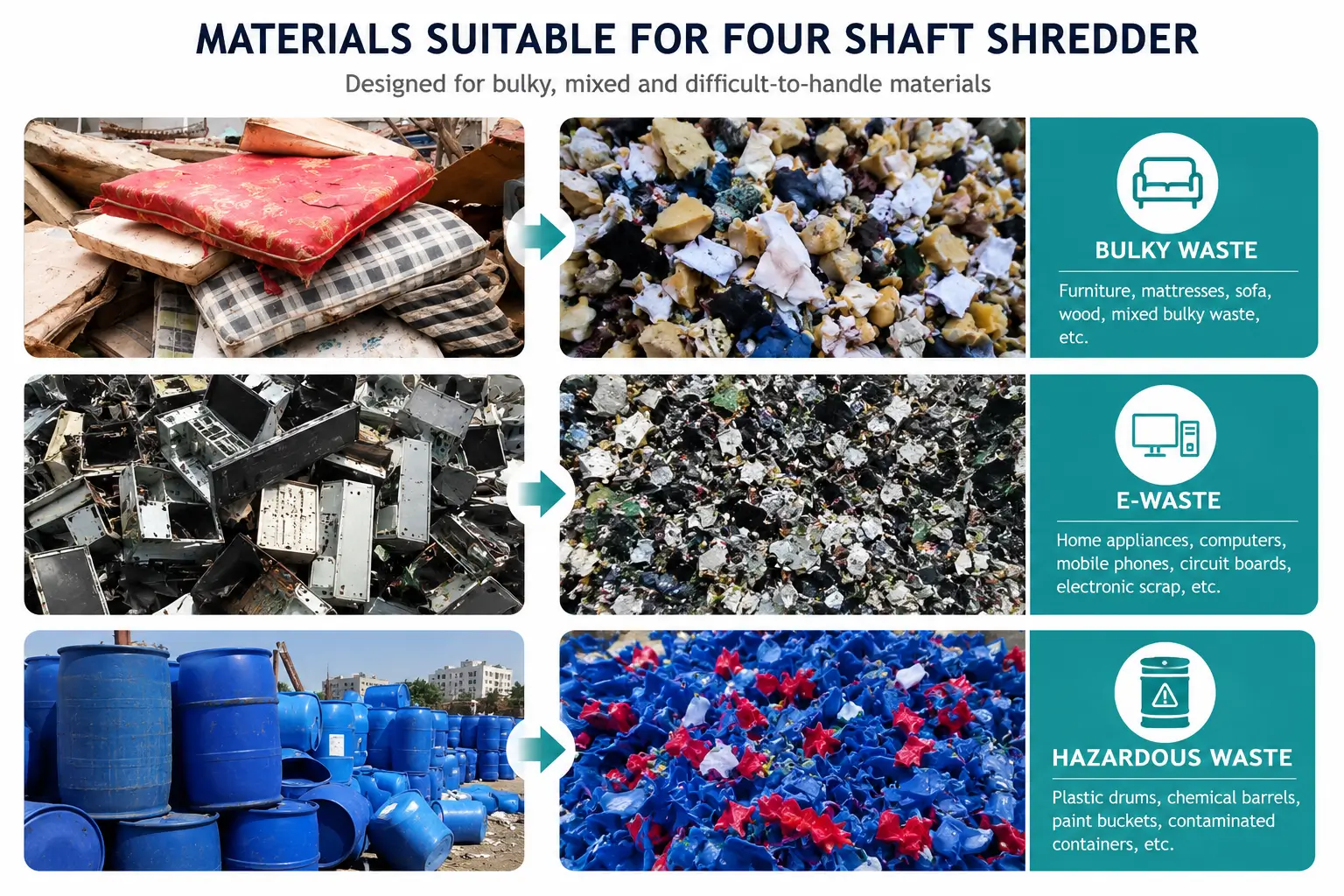

Four shaft shredder applications for bulky waste e-waste and hazardous waste packaging

Industrial solid waste

Scrap plastics, plastic drums, rubber waste, fishing nets, fiber, woven bags, packaging residue and mixed workshop waste.

Waste recycling

Used appliances, CRT TVs, refrigerators, bicycles, oil drums, light metal scrap and mixed recyclable material before separation. For complete scrap processing projects, the shredder can work with a Waste Metal Shredding & Recycling System.

Bulky waste

Sofas, mattresses, pallets, furniture waste, wood-rubber composite waste and large-volume municipal or commercial waste.

Hazardous packaging

Chemical drums, paint buckets, contaminated containers and industrial packaging waste. Supporting safety measures must be confirmed before processing.

E-waste

Used computers, printers, small appliances, circuit-board mixed waste and other electronic scrap before magnetic or eddy-current separation.

RDF / SRF preparation

Mixed combustible waste where stable feeding and controlled size reduction are needed before drying, screening or fuel preparation. If tire rubber is part of the project, a dedicated Waste Tire Shredding & Recycling System may be more suitable for high-volume processing.

Typical Recycling Line Configurations

A four shaft shredder often works as the size-control stage before separation, granulation, washing or baling.

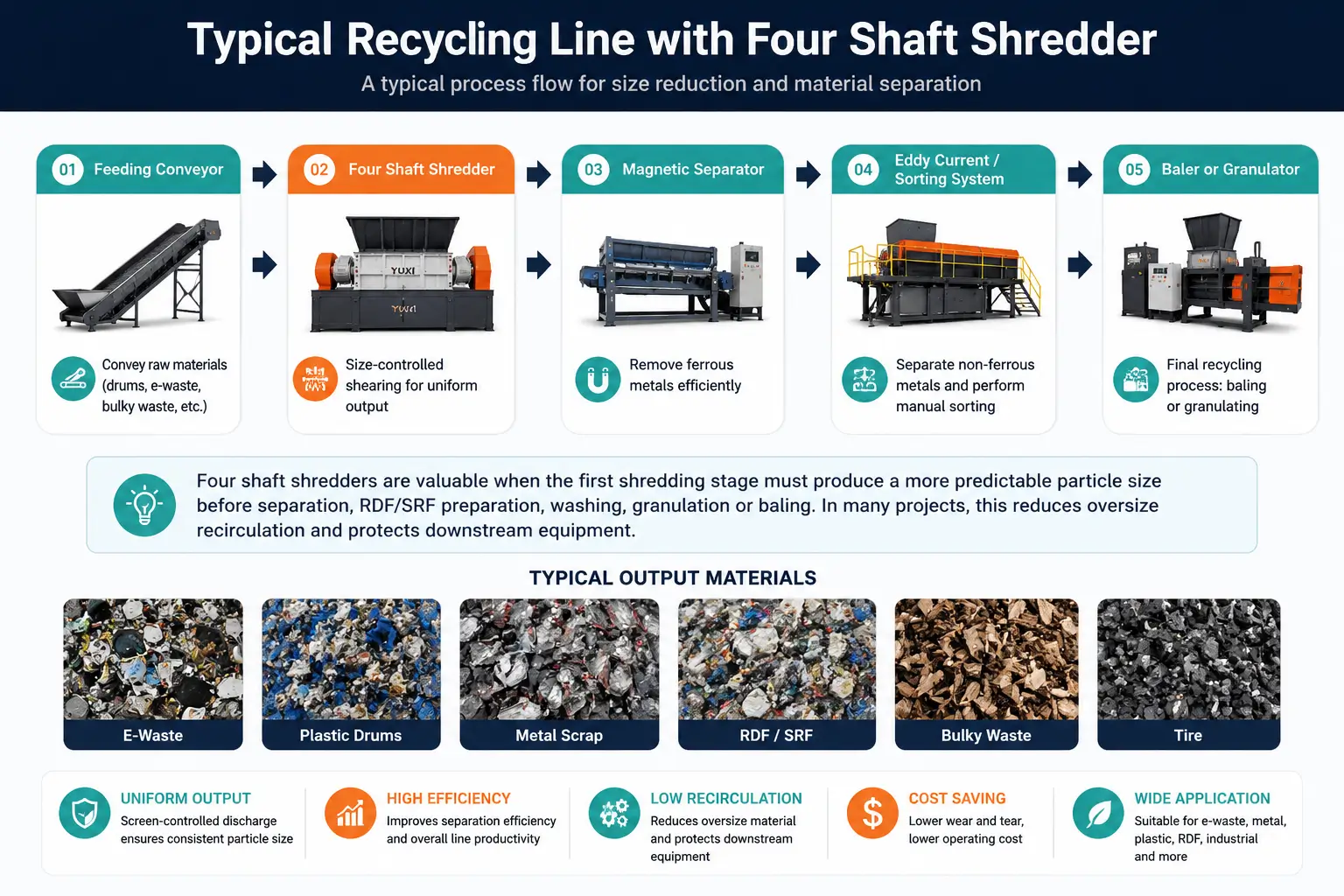

Four shaft shredder recycling line layout with feeding conveyor separators sorting and baler

E-waste recycling line

Process: feeding conveyor → four shaft shredder → magnetic separator → eddy current separator → manual/optical sorting.

The shredder helps open and reduce mixed electronic waste so metals and plastics can be separated more steadily.

Plastic drum and packaging line

Process: feeding → four shaft shredder → washing or residue control → granulator → storage.

For contaminated drums, safety evaluation, ventilation and residue handling must be designed before installation.

RDF/SRF preparation line

Process: pre-sorting → four shaft shredding → screening → magnetic separation → drying or fuel preparation.

Controlled discharge size helps stabilize later screening, conveying and thermal-process feeding.

Light metal recycling line

Process: feeding → four shaft shredder → magnetic separation → non-ferrous separation → baling or further crushing.

For heavy steel scrap, model selection must be checked carefully by shaft strength, blade thickness and gearbox torque.

Four Shaft Shredder Technical Specifications

Final specifications should be confirmed by test material, required output size, hourly capacity and downstream equipment. The table below is a practical specification framework for product-page presentation.

Specification Item	Common Options / Ranges	Why It Matters
Shredding chamber	Customized by feeding size and material volume	A larger chamber improves feeding of bulky material but also increases drive and frame requirements.
Motor power	Selected according to torque demand and target capacity	Power alone does not decide performance; gearbox torque and blade design are equally important.
Blade material	D2, SKD11 or other alloy tool steel options	Wear resistance and toughness must match material contamination and operating hours.
Blade thickness	Project-specific	Thicker cutters are often used for stronger material; thinner cutters may support smaller output.
Screen opening	Commonly about 20–80 mm or customized	Screen size directly affects output size, throughput and motor load.
Control system	PLC control, overload protection, reverse function	Automatic reverse and overload protection reduce jamming and protect the drive system.
Conveyor system	Feeding conveyor, discharge conveyor, magnetic separator	Stable feeding is often as important as the shredder itself.

Engineering note: many buyers ask first about motor power. In practice, output size, blade geometry, shaft layout, screen opening and feeding method often decide whether the machine runs steadily.

Output Size and Capacity: What Really Changes Performance?

Screen Size	Typical Output Character	Common Use	Capacity Impact
20–30 mm	Finer discharge	E-waste, pre-granulation, more controlled sorting	Lower throughput, higher cutting load
40–50 mm	Medium discharge	Plastic drums, industrial waste, RDF preparation	Balanced output and capacity
60–80 mm	Coarser discharge	Bulky waste, pre-sorting, large material reduction	Higher throughput, less size control

Capacity is not a fixed number. A machine processing light plastic drums may achieve a different hourly output from the same model processing wet textile waste, mixed e-waste or metal-contaminated RDF. For accurate selection, test photos, material size, density, contamination and target output should be checked together.

How to Choose the Right Four Shaft Shredder

A good selection process starts from the material and the downstream line, not from a model number.

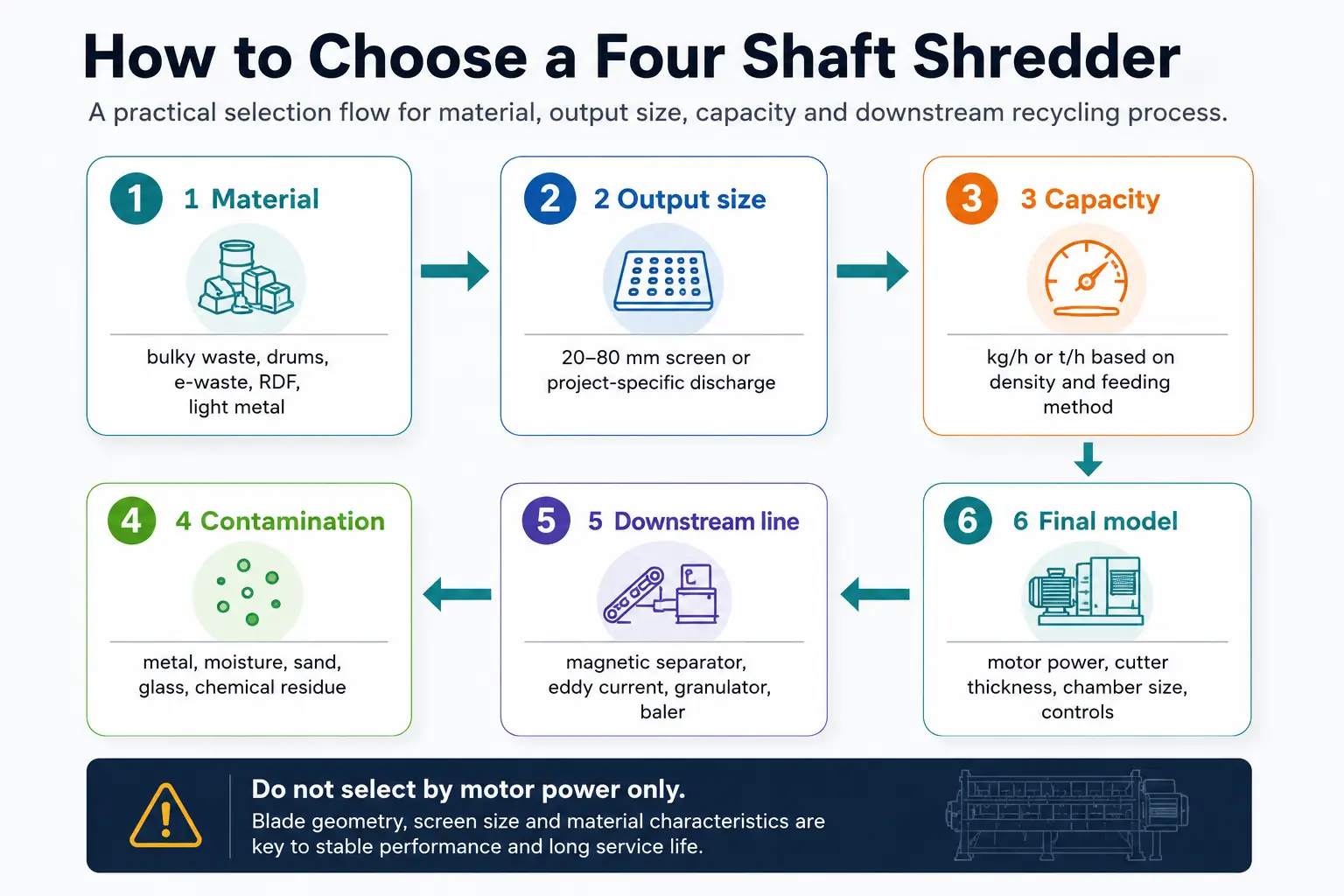

How to choose a four shaft shredder flowchart

Information to confirm before quotation

Material type, size, density and moisture
Whether metal, sand, glass or chemical residue is present
Required output size or downstream machine inlet size
Target capacity per hour or per shift
Feeding method: manual, conveyor, grab crane or loader
Whether the line needs magnetic separator, eddy current separator, granulator or baler

If your project requires more precise particle-size control than a dual-shaft machine can provide, compare Single Shaft Shredders, Double Shaft Shredders and four shaft shredders before final selection.

Common buyer mistakes

Choosing only by motor power
Ignoring screen size and its effect on throughput
Using one machine for too many unrelated materials without testing
Underestimating contamination and blade wear
Forgetting maintenance space around the chamber and reducer

Main Components and Customization Options

Cutter shafts

Two upper and two lower shafts form a repeated shearing zone. Shaft diameter and cutter layout should match the material strength and feeding size.

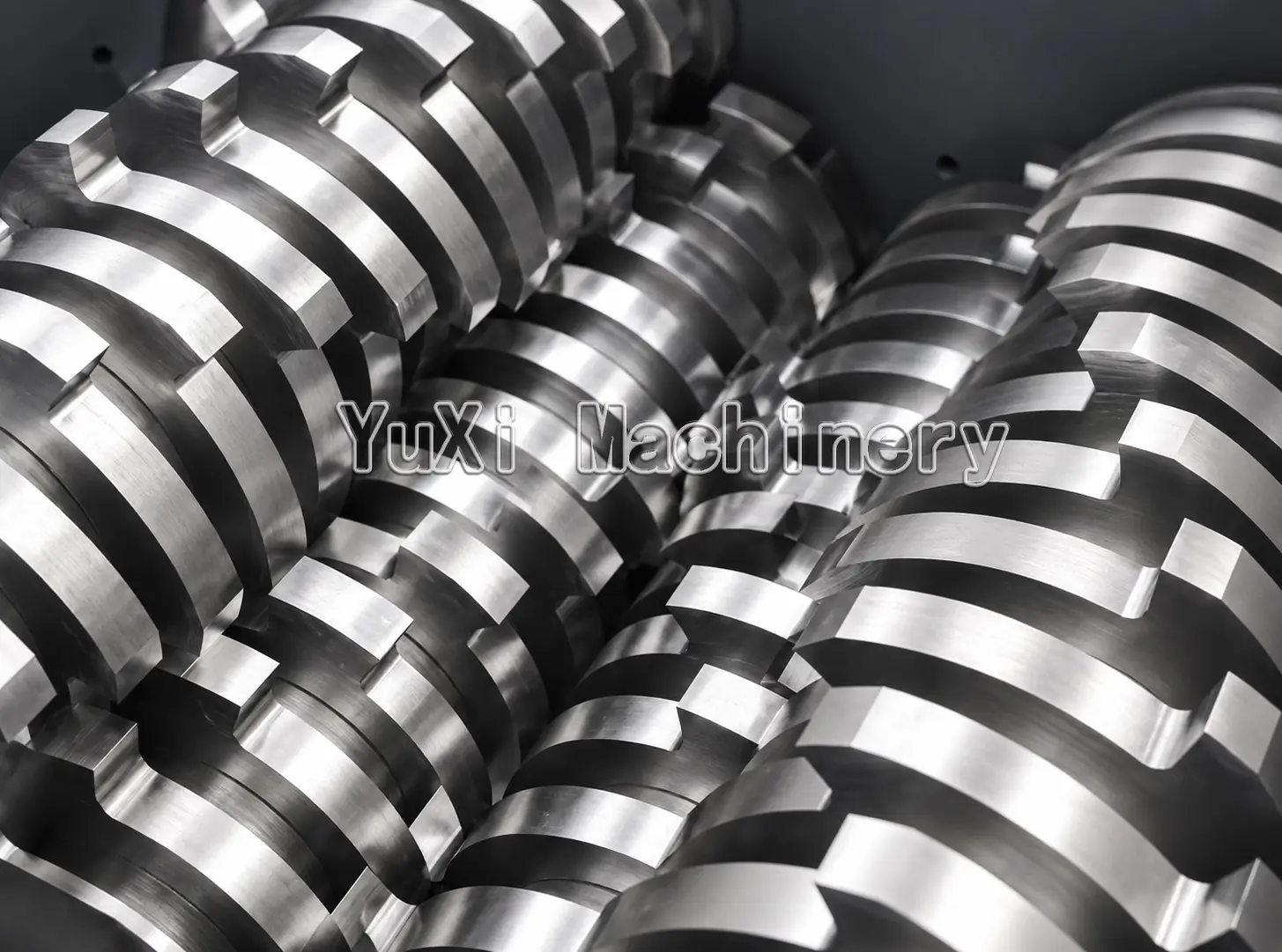

Cutter blades

Blade material, hook shape, thickness and heat treatment determine grabbing ability, wear resistance and maintenance interval.

Screen system

The screen controls output size but also affects throughput. Smaller openings usually mean longer residence time and higher load.

Gearbox and drive

Heavy-duty reducers convert motor power into stable torque. Overload protection and automatic reverse help when processing mixed waste.

Hopper and conveyor

Hopper shape decides whether bulky material feeds smoothly. A matched conveyor prevents unstable feeding and unnecessary jamming.

PLC control

PLC control can include start/stop sequence, current monitoring, overload reverse, alarm display and line interlock with conveyors.

How to Select the Right Four Shaft Shredder Machine

Choosing a four shaft shredder machine is not simply a matter of selecting the largest motor or the heaviest machine. In most recycling projects, the correct configuration depends on the material type, required output size, production capacity and downstream processing equipment.

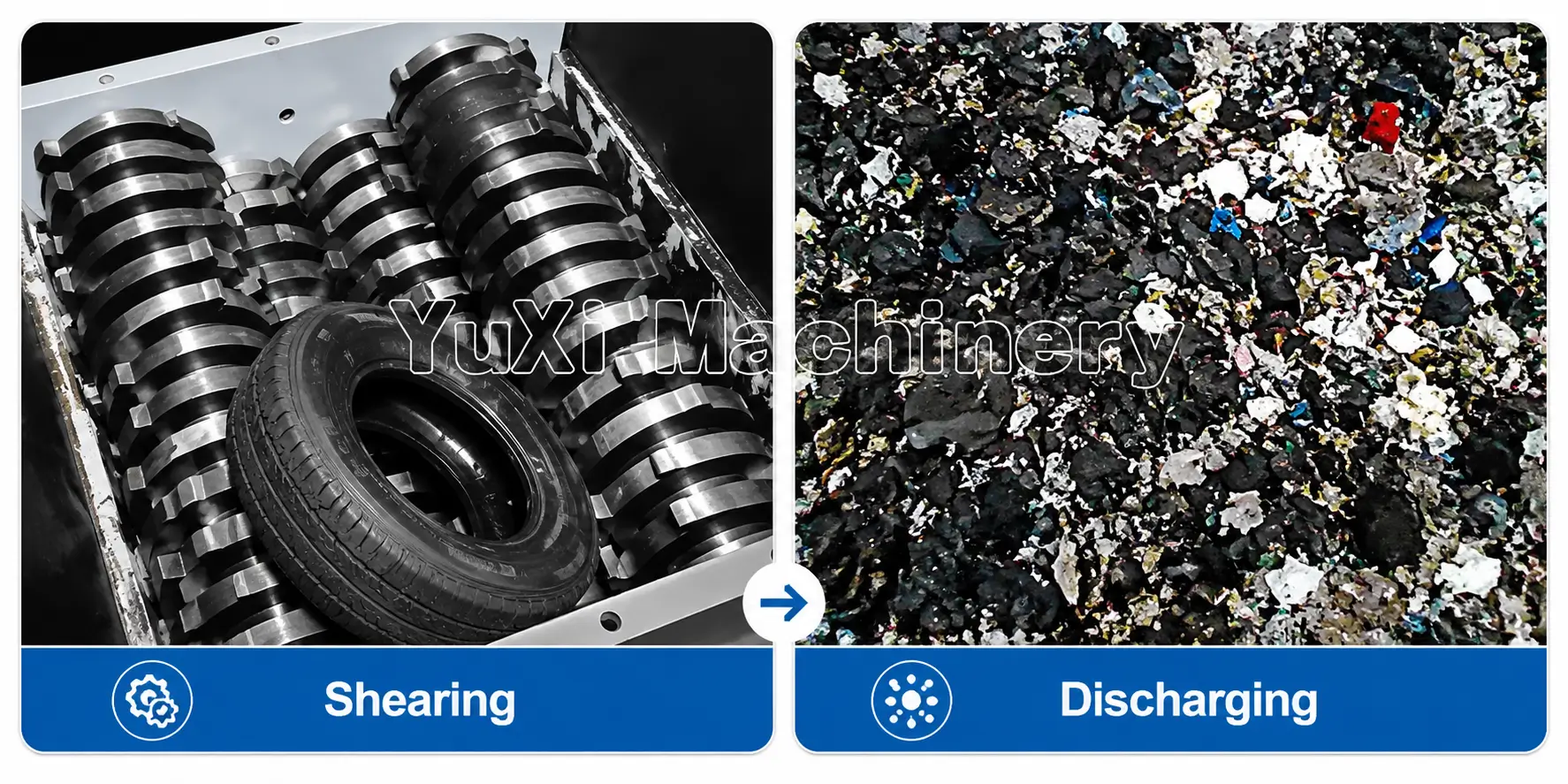

Four shaft shredder shearing and discharging process

Four shaft shredders are commonly used for bulky waste, e-waste, plastic drums, light metal scrap and RDF production where controlled output size is required. Compared with conventional double shaft shredders, the integrated screening system helps achieve more uniform output size and reduces the need for additional size-reduction stages.

When Is a Four Shaft Shredder Machine the Best Choice?

A four shaft shredder machine is often selected when projects require both aggressive material reduction and controlled output size. Compared with a standard 4 shaft shredder used only for volume reduction, a screen-controlled quad shaft shredder can produce more consistent discharge suitable for downstream recycling processes. Materials that remain larger than the selected screen opening continue circulating inside the shredding chamber until they reach the target particle size.

More consistent output size than a standard double shaft shredder
Suitable for bulky, mixed and difficult-to-handle waste streams
Integrated screening system for controlled particle size reduction
Compatible with magnetic separation, eddy current separation and sorting systems
Ideal for RDF, SRF, e-waste, plastic drums and industrial recycling projects requiring a four shaft industrial shredder

Need Help Selecting a Four Shaft Shredder Model?

To recommend the right four shaft shredder configuration, our engineers typically evaluate:

Material type and density
Maximum feeding size
Required output particle size
Hourly processing capacity
Downstream recycling process

As an experienced four shaft shredder manufacturer and four shaft shredder supplier, YUXI helps customers select the most suitable machine configuration based on material characteristics, output requirements and recycling-line objectives.

Send material photos or videos together with your capacity and output-size requirements. We can recommend a suitable shredder model, blade configuration and complete recycling-line solution.

Whether you are looking for a four shaft shredder for sale, a quad shaft shredder for electronic waste recycling, or a four shaft industrial shredder for RDF and bulky waste processing, selecting the correct blade configuration, screen size and drive system is critical to long-term operating performance.

Related Four Shaft Shredder Resources

Explore practical guides covering four shaft shredder applications, machine selection, output-size control, blade configurations and recycling-line design.

How Does a Four Shaft Shredder Work?

Explain the cutting shafts, screen system, recirculation process and controlled discharge logic in more detail.

Four Shaft Shredder vs Double Shaft Shredder

Compare machine structure, output size control, application range, cost and downstream process requirements.

Four Shaft Shredder Price Guide

Review the main factors that affect machine price, including chamber size, drive system, blade material and screen design.

How to Choose a Four Shaft Shredder

Help buyers confirm material type, feeding size, output size, hourly capacity and recycling-line configuration.

Four Shaft Shredder for E-Waste Recycling

Focus on appliance waste, computer scrap, mixed electronics and separation-line preparation.

Four Shaft Shredder for RDF/SRF Production

Explain controlled size reduction for combustible waste before screening, magnetic separation and fuel preparation.

Four Shaft Shredder FAQ

What is a four shaft shredder used for?

It is used for controlled size reduction of bulky waste, e-waste, plastic drums, hazardous packaging, RDF/SRF material, light metal scrap and mixed industrial waste before sorting, separation, washing, granulation or baling.

What is the main advantage of a four shaft shredder?

The main advantage is repeated cutting with screen-controlled discharge. This helps produce more uniform output than ordinary rough shredding.

Is a four shaft shredder better than a double shaft shredder?

Not always. A double shaft shredder is often enough for rough pre-shredding. A four shaft shredder is better when output size control and fewer oversize pieces are important.

Can a four shaft shredder shred metal?

It can process light metal scrap, cans, oil drums, bicycles and thin metal waste depending on model configuration. Heavy steel scrap requires careful confirmation of shaft strength, blade thickness and gearbox torque.

Can it process electronic waste?

Yes. It is suitable for many e-waste pre-processing lines because it can reduce mixed appliances, computer waste and electronic scrap before magnetic and non-ferrous separation.

What output size can it produce?

Output size depends mainly on the screen opening and cutter configuration. Common screen openings may range from about 20 mm to 80 mm, but the final choice should follow the downstream process.

Does a smaller screen always mean better output?

No. A smaller screen can produce finer discharge, but it usually reduces capacity and increases load. The best screen size balances output requirement, throughput and wear cost.

Can one machine process many materials?

It can process different materials, but one configuration is not always ideal for every material. If the plant handles very different waste streams, blade design and screen selection should be checked carefully.

How much does a four shaft shredder cost?

The price depends on chamber size, motor power, reducer configuration, blade material, screen design, conveyor system, electrical control and whether it is supplied as a single machine or part of a recycling line.

What information is needed for quotation?

Please provide material type, feeding size, photos or videos, required output size, target capacity, working hours per day, downstream process and installation site conditions.

Get a Four Shaft Shredder Configuration for Your Material

For a reliable recommendation, send YUXI your material photos, input size, required output size, capacity target and downstream process. The engineering team can help select chamber size, cutter design, screen opening, conveyor layout and optional separators.
