Waste Metal Shredding & Recycling System

Scrap crushing production line belongs to the category of waste metal recovery production line equipment. It is mainly for crushing and processing of large volume scrap iron and steel materials. Scrap metal crusher is the basis of the extension of broken scrap metal recovery.
The whole production line is composed of feeding conveyor – host machine – vibrating feeder – discharging conveyor – magnetic separator – iron conveyor – impurity conveyor – dust collector – PLC control cabinet.

Application.

1. Waste vehicle, motorcycle, bicycle etc.
2. Steel plate not exceeding 10mm, rebar not exceeding 16mm and section steel, steel structure parts.
3. Other scrap steel, if packing blocks with density not more than 0.65 t /m3.
4. Household appliances excluding motors, compressors, shafts etc.

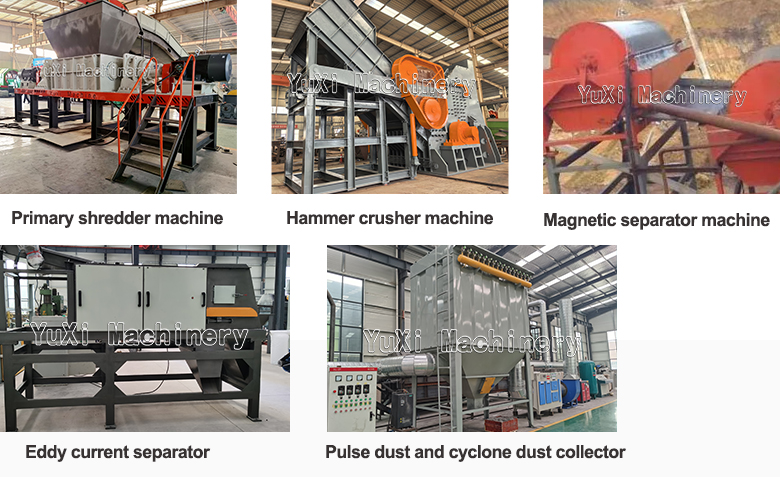

Working Process

1. Primary shredder machine- Finished product size 5-10cm Strip shape ;
2. Hammer crusher machine- Finished product size 3-5cm ball shape ;
3. Magnetic separator machine- Separate the iron and no-metal ;
4. Eddy current separator- Separate the Non ferrous and non-ferrous metals ;
5. Pulse dust and cyclone dust collector – Collect the dust.

Feature

1.The blade of the scrap metal pulverizer is a meshing blade made of high alloy, which has a good pulverizing effect on any high hardness material.
2.It is driven by a geared motor, which saves 20% of the electricity compared to other cans.
3.PLC control system and hydraulic power system help the intelligent crushing work, which saves time and effort, and the operation of the metal recycling equipment is clear at a screen.
4.Our shredding chamber are connect by bolt, up and down opening and closing design, more convenient for worker to open and maintain, save time and make sure the efficiency.
