Hydraulic Shredder

YUXI hydraulic double shaft shredder is driven by an advanced hydraulic system and equipped with a high-torque shearing shaft, capable of easily handling various difficult-to-crush materials. From metal waste, used household appliances to plastic buckets, tires and industrial waste, our equipment can efficiently complete crushing tasks, reducing your processing costs and enhancing the value of resource recycling.

Application

Metal recycling: Used cars, household appliances, steel, etc
Used tires: car tires, truck tires, construction machinery tires
Plastic products: large plastic containers, pipes, waste plastics
Industrial waste: packaging waste, wood, paper mill waste
Hazardous waste: Compliant treatment, meeting environmental protection standards

Working Principle

The hydraulic twin-shaft shredder’s operating principle is based on a dual-shaft drive system combined with hydraulic transmission technology. The hydraulic system provides power to shred materials.
1. Twin-Shaft Shearing Structure

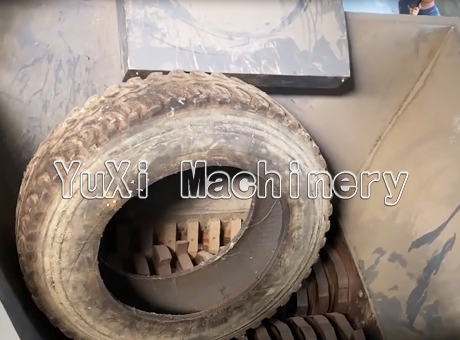

It consists of two counter-rotating cutter shafts, each equipped with staggered shredding blades. Once the material enters the shredding chamber, the blades shred it through shearing, squeezing, and tearing forces.
2. Hydraulic Transmission System

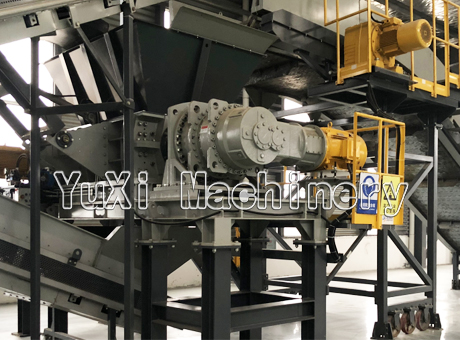

A hydraulic pump drives a planetary reducer to provide power. The cutter shaft speed and torque are controlled through hydraulic circuits, achieving efficient shredding.
3. Compound Crushing Method

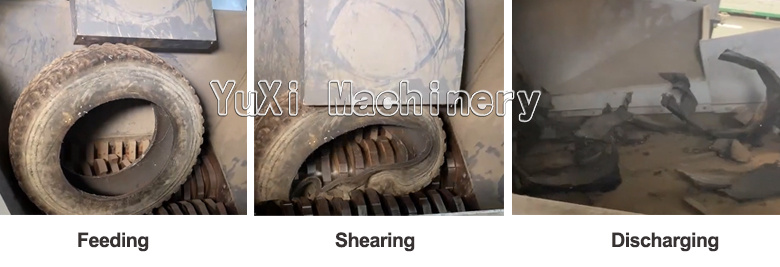

Combined with comb-type tooth plates, a shear gap is formed. Through multiple tearing, squeezing, and shearing actions, the material is gradually broken down and discharged through the screen.

Feature

1.Powerful Power System
It adopts imported hydraulic pumps and motors to provide stable and powerful power output Low-speed high-torque design, with strong tearing force and low energy consumption Overload protection function effectively prevents accidental damage and extends the service life of the equipment
2.Intelligent Control System
PLC automatic control enables one-click start, stop and reverse functions The touch screen human-machine interface is easy to operate and provides intuitive monitoring
Customizable programming to meet the crushing requirements of different materials

3.Outstanding Blade Design
It is made of special alloy steel and undergoes a special heat treatment process
The unique knife shaft structure and blade arrangement enhance the crushing efficiency
It can be ground multiple times, has a long service life and low maintenance cost
