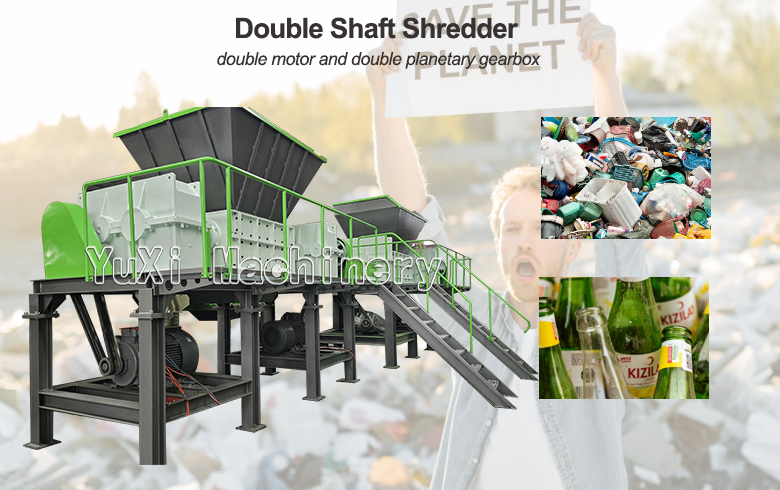

Double Shaft Shredder

Double shaft shredder driven by double motor and double planetary gearbox. Based on the principle of shearing, the material is shredded by relative rotation of two sets blades.Since the strong power and high stability of this shredder, it is often used for MSW treatment, resource regeneration, pretreatment of refuse burning and other environmental protection field.

Application

Kitchen : Fruit and vegetable waste, kitchen waste, wet market waste etc
Plastic : Plastic bottles,plastic jugs, plastic buckets,plastic baskets etc
Electronic : Old hard disk, PCB boards, keyboards, mice,mobile phones, CDs etc
Metal :Iron shavings, cans, paint buckets,light metals etc
Paper :Used cartons, cardboard, newspapers, books,documents,brochures etc
Industrial : Old clothes, leather, textile scraps, carpet factory waste fabric etc
Technical Specifications

Technical Specifications

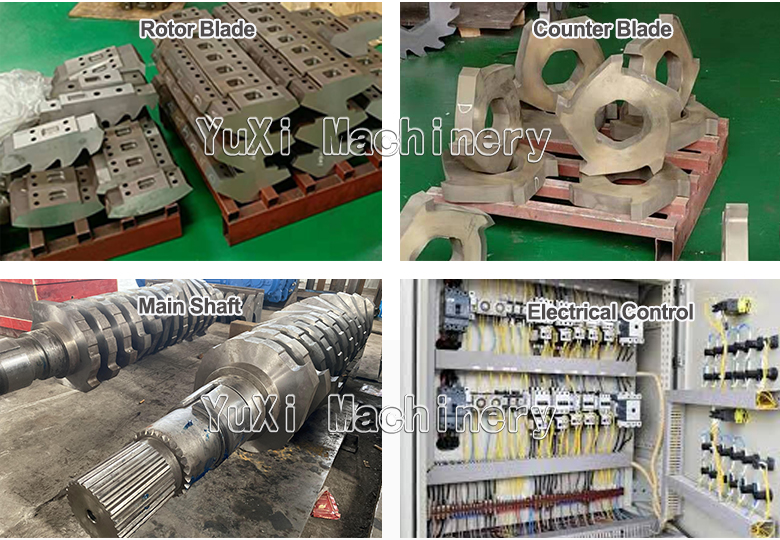

Main Components

1.Rotor Blade

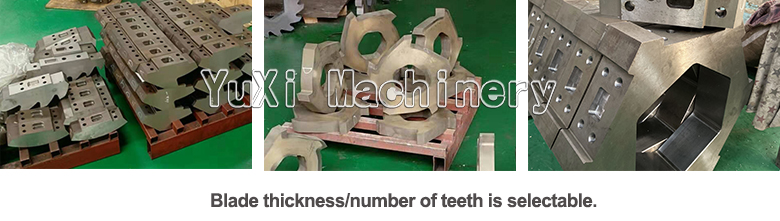

Adjustable blade thickness & teeth number.
2.Counter Blade
Counter blades on both sides of shredding chamber can prevent material from winding.
3.Main Shaft
Adopts 42CrMo high alloy steel, ensure its good mechanical strength and shock resistance.
4.Electrical Control
Monitor key parameters to ensure the safety.

Feature

1. Powerful Power Train: A renowned brand motor perfectly matched with a heavy-duty reducer provides continuous, stable high-torque output, ensuring smooth operation even under heavy loads and high-hardness materials. Powerful and reliable, the machine never stalls.
2. Tool Material: Blades are made from imported/domestic top-grade special alloy steel (such as D2, Cr12MoV, etc.). They undergo multiple vacuum heat treatments and cryogenic processes, resulting in high hardness, excellent toughness, and extreme wear resistance, extending their service life several times.
3. Forged Spindle: The blade shaft is forged from high-quality alloy steel. Through multiple processes including quenching and tempering, precision turning, and grinding, it possesses exceptional fatigue and torsional strength, fundamentally ensuring the long-term reliability of the equipment.
4. Intelligent Control System: Equipped with a PLC automated control system, it offers features such as one-touch start/stop, automatic reverse, and overload protection.
